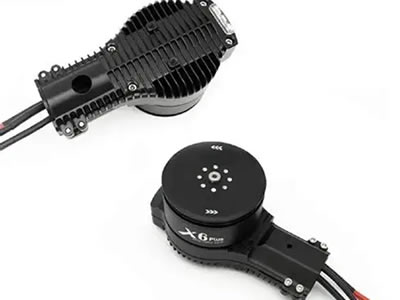

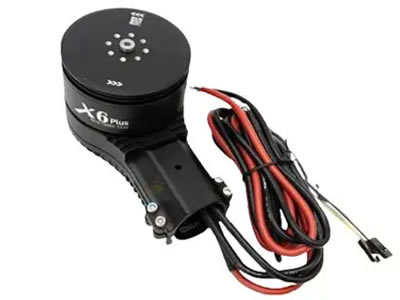

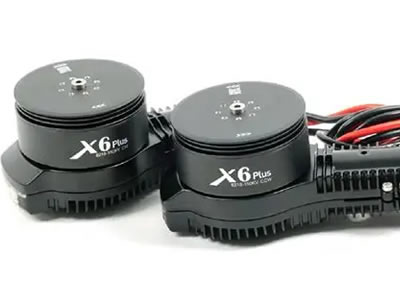

Hobbywing X6 Plus G2 CW Motor
1.TheHobbywing XRotor X6 Plusmotor and propeller combo is designed to deliver exceptional lifting power for professional agricultural UAVs
2. Powered by a KV rating of 150 rpm/V and compatible with 12?14S LiPo batteries, it offers outstanding efficiency and endurance.
3.Power cable: 14AWG 870 mm* Signal cable: 10000 mm.
Note:
If your shipment is deliveyellow to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
This is the CW rotation variant of the Hobbywing X6 Plus G2 Motor CW in Drone Motor.
The Hobbywing X6 Plus G2 CW Motor is a next-generation integrated propulsion system designed for small-to-mid-sized industrial UAVs. Built on the proven X6 platform, it delivers enhanced efficiency, improved thermal performance, and higher thrust, making it ideal for agricultural drones, surveillance, and training applications.
-
Specification:
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight(with cable and Props)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated power input
- Rated power output
- Pinout
-
- 12.5 kg(Sea level)
- 6kg (Sea level)
- 7.3 g/W
- 12S~14S(LiPo)
- 14S-54V / 12S-48V
- 18 to 63 V
- D30 mm
- 748 g
- Power cable: 14AWG 870 mm* Signal cable: 10000 mm
- -20to 50 ��
- IPX6
- 820 W
- 705 W
- Black-GND, White-PWM & Yellow-GND, Gray-CH, Green-CL
-
- Rated voltage
- Communication protocol
- Peak current (3 seconds)
- Continuous current
- Throttle travel calibration
- Double throttle signal
- Operating pulse width
- Failure storage & Log
-
- 14 S / 12 S
- Cyphal(UAVCAN)
- 80 A (3s)
- 25 A
- Not supported
- PWM + CAN
- 1050 to 1950 us
- Supported
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 150 KV
- 28N24P
- 62��18 mm
- 68.9 mm
-
- Model
- Total Weight
- Material of Props
- Single Weight
-
- MFP 24 x 8.0 (Folding propeller)
- 107 g*
- Carbon fibre-reinforced nylon composite material
- 33.5 g*
Package Includes:
1xHobbywing X6 Plus G2 CW Motor system
